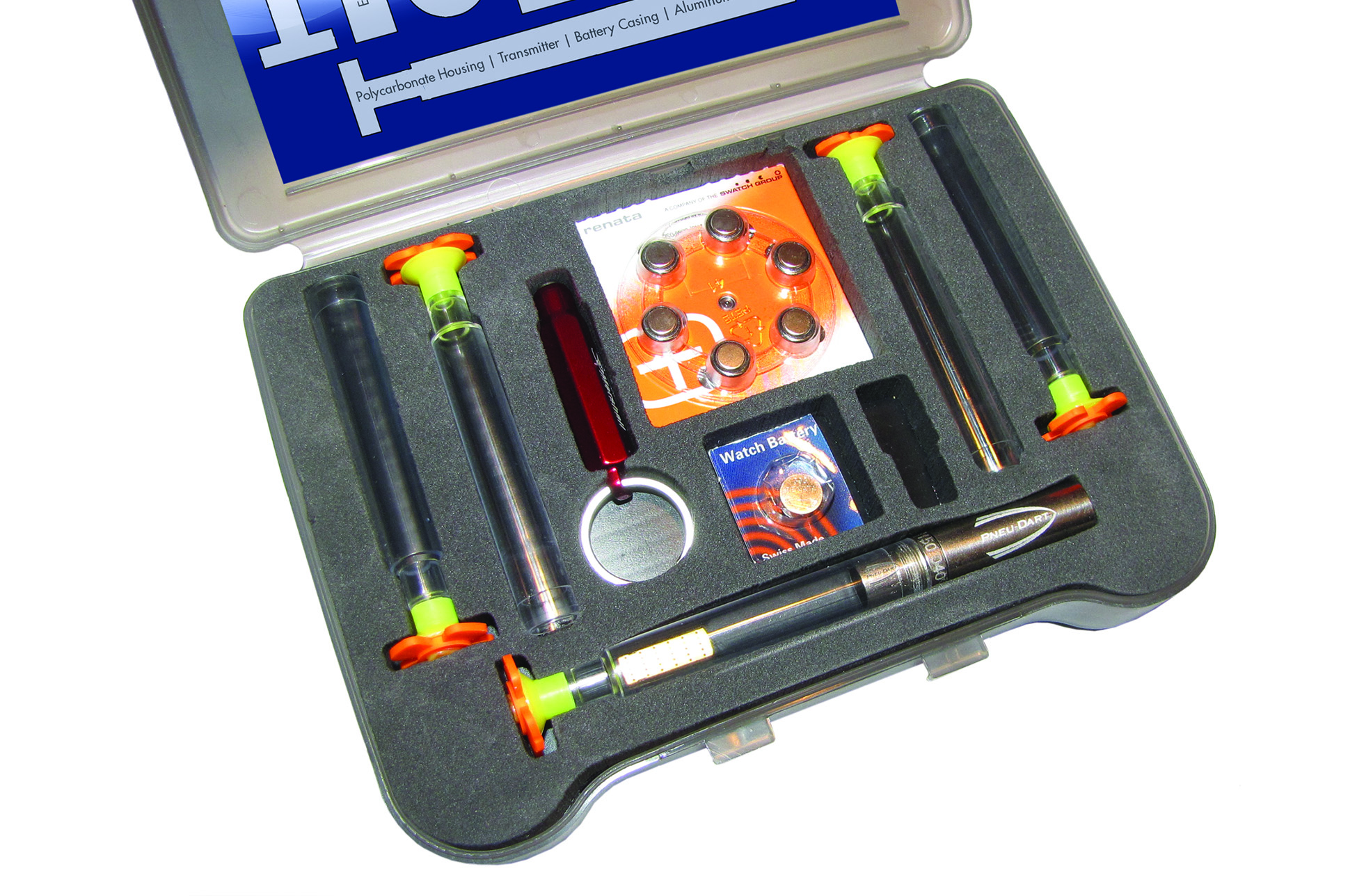

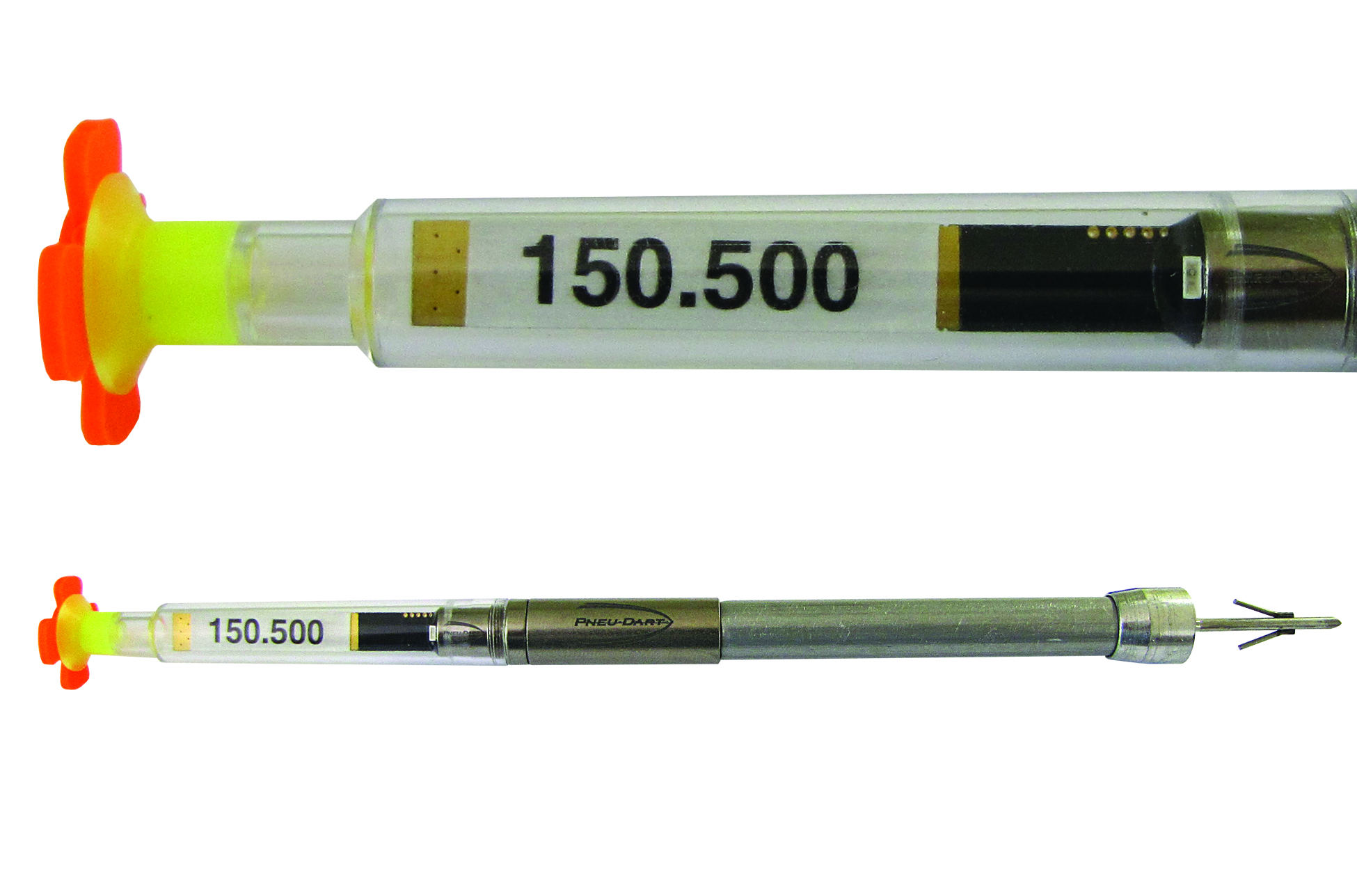

Easily track your darted animal with our new PLL (Phase Lock Loop) Transmitter Dart – a microprocessor control advanced feature transmitter with solid-state components.

PLL Transmitter Dart Specifications

PLL Transmitter Dart Specifications

• Our new UNI-body case design fortifies the transmitter to withstand kinetic energy impact values FIFTEEN times greater than anything else on the market.
• Effective range up to 1.5 miles depending upon topography.
• Battery life provides up to 120 continuous hours of transmission (zinc air battery only); 12 hours for silver oxide battery.
• Frequency and temperature stable operation (operating temperature between -40 to 150ºF).
• Practical performance features include the ability to maintain high power output transmission qualities even as the battery drains are found nowhere else.
• Once tightened, the battery cap activates the transmitter manually.
• 28 milliseconds pulse rate, 50 pulses per minute.
• Magnetic tap-on tap-off activation with pulsing LED light for easy detection.

Available Drug Capacities

 1 cc drug capacity | dart length 8 15/16″ + cannula

2 cc drug capacity | dart length 9  5/8″ + cannula

3 cc drug capacity | dart length 10 1/2″ + cannula
